RM 120X

Up to 350 tonnes per hour, depending on material. Maximum potential throughout is 650 tonnes per hour.

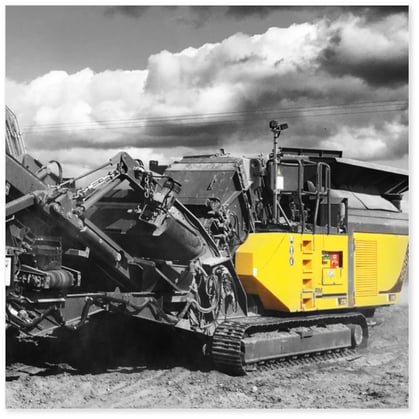

The RM 120X impactor delivers a high reduction ratio while being easy to maintain. The 4-bar rotor is driven directly through a 400 HP John Deere diesel engine and can be used in primary and secondary crushing applications. The crusher box features a 3-stage single-apron impact wall for fast and easy adjustment of your closed side setting. The RM Active Pre-Screen is an independently driven aggressive pre-screen to bypass fines to the main conveyor or to discharge a spec material on the side through an optional side-discharge conveyor.

Need Help?

Speak with a Crusher Expert Now

1300 859 885 | Chat with us

RM-100GO-MS100GO-Stahlbeton-Polen-2-1920x693@2x
3
4-1
rm120x
  • Specifications

Specifications

FINAL PRODUCT

Cuboidal aggregate of less than 70mm.



FEED MATERIAL SIZE

Up to an edge length of 850mm.

Up to an edge length of 850mm.



FEED OPENING

1160 x 820mm



POWER UNIT

Diesel direct drive: John Deere, 6 cylinders, 298 kW at 2200 rpm, Maximum flexibility with hybrid drive.



FEED UNIT

Asymmetric 4m3 vibro-channel with 2 vibration motors (3.1 kW each), loading height 3,170mm, effective cross-section of feed intake: 3.100 x 2.200mm.

Feed Control System for automatic load-dependent crusher feeding wear-resistant cladding Hardox 450.



CRUSHER UNIT

RubbleMaster crusher with 2 or 4 hammers, 3 rotor speeds



DISCHARGE BELT

1200mm wide, discharge height 3600mm.



TRANSPORT SYSTEM

Tracks



WEIGHT

35,600 - 46,400kg



FEATURES

  • Dust suppression system.
  • Magnetic separator.
  • Hammer changing device.
  • RM exclusive release system.
  • Fully remote operated.
  • RM exclusive track and crush.
  • Engine compartment lighting.
  • RM exclusive site direct training.
  • RM exclusive lifetime support.
  • RM exclusive five-year warranty.
